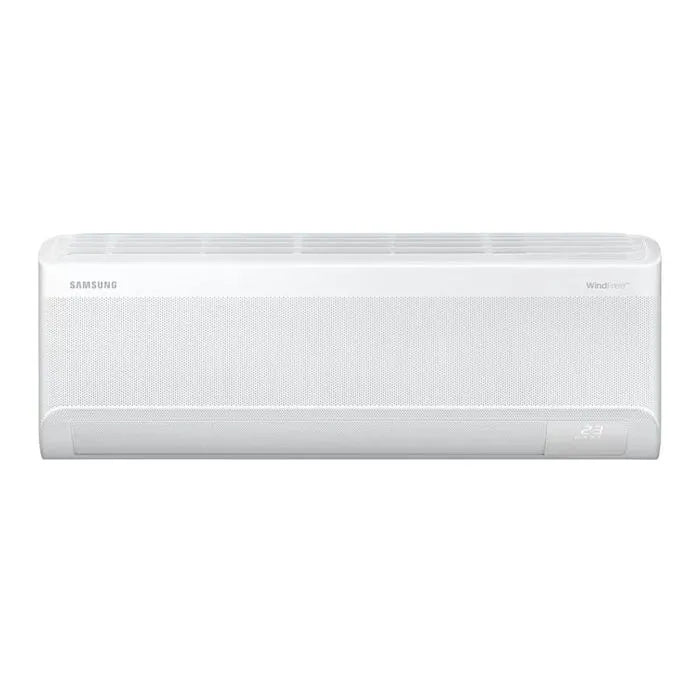

Samsung 18000BTU/h Wall-Mount AC Wind-Free™

Samsung 18000BTU/h Wall-Mount AC Wind-Free™ - AR70F18C1FW/FA

•AI Fast & Comfort Cooling
•AI Energy Mode
•Comfort Drying

Specifications
Capacity (Cooling, Btu/hr)17061
 Capacity (Cooling, kW)5.00
 EER (Cooling, W/W)3.41
 Net Dimension (Outdoor, WxHxD, mm)790 x 548 x 285

Specifications Detail
Capacity
Capacity (Cooling, Btu/hr)17061
 Capacity (Heating, Btu/hr)20473
 Capacity (Cooling, Min - Max, Btu/hr)5118 - 23203
 Capacity (Heating, Min - Max, Btu/hr)3992 - 25591
 Capacity (Cooling, kW)5.00
 Capacity (Heating, kW)6.00
 Capacity (Cooling, Min - Max, kW)1.5 - 6.8
 Capacity (Heating, Min - Max, kW)1.17 - 7.5

Energy Efficiency
EER (Cooling, W/W)3.41
 COP (Heating, W/W)3.43
 EER (Cooling, Btu/hW)11.65
 COP (Heating, Btu/hW)11.70
 Energy Efficiency Class for cooling (Grade)C : A+, H : A+

Noise Level
Noise Level (Indoor, High/Low, dBA)43/25
 Noise Level (Outdoor, High/Low, dBA)51

Electrical Data
Power Source(Φ/V/Hz)1 / 220~240~ / 50
 Power Consumption(Cooling, W)1465
 Power Consumption(Heating, W)1750
 Operating Current(Cooling, A)6.5
 Operating Current(Heating, A)7.8

Physical specification
Gross Dimension (Indoor, WxHxD, mm)1115 x 290 x 375
 Gross Dimension (Outdoor, WxHxD, mm)913 x 622 x 371
 Net Dimension (Indoor, WxHxD, mm)1055 x 299 x215
 Net Dimension (Outdoor, WxHxD, mm)790 x 548 x 285
 Gross Weight (Indoor, kg)13.2
 Gross Weight (Outdoor, kg)31.5
 Net Weight (Indoor, kg)11.5
 Net Weight (Outdoor, kg)29.7
 Loading Quantity (20/40/40Hft without Pipe)80 / 168 / 198

Technical Information
Piping Length (Max, m)30
 Piping Height (Max, m)15
 SVC Valve (Liquid (ODxL))6.35
 SVC Valve (Gas (ODxL))12.7
 Moisture Removal (l/hr)1.93
 Air Circulation (Cooling, ㎥/min)16.60
 Refrigerant (Type)R32
 Refrigerant (Charging, kg)0.97
 Refrigerant (Charging, tCO2e)0.65
 Low Ambient (Cooling, ℃)-10~46
 Low Ambient (Heating, ℃)-15~24
 Outdoor Unit (Compressor Type)BLDC
 Outdoor Unit (Anti-Corrosion Fin)Yes

Air Flow
WindFree CoolingYes
 Air Direction Control (Up/Down)Auto
 Air Direction Control (Left/Right)Auto
 Air Flow Control Step (Cool/Fan)5/4

Air Purification
PM 1.0 FilterNo
 4-in-1 Care FilterYes
 Copper Anti-bacterial FilterYes
 Auto Clean (Self Cleaning)Yes

Convenience
SmartThingsYes
 AI Auto CoolingYes
 Motion Detect SensorNo
 Freeze WashYes
 Filter Cleaning IndicatiorYes
 Indoor Temp. DisplayYes
 Display On/OffYes
 Beep On/OffYes
 24-Hour TimerYes
 Auto ChangeoverYes
 Auto RestartYes

Operating Mode
Auto ModeYes
 Fast CoolYes
 Dry ComfortYes
 Good SleepYes
 Eco ModeYes
 DehumidificationYes
 Fan ModeYes
 QuietYes

Smart
WiFi EmbeddedYes

App Connectivity
SmartThings App SupportYes
