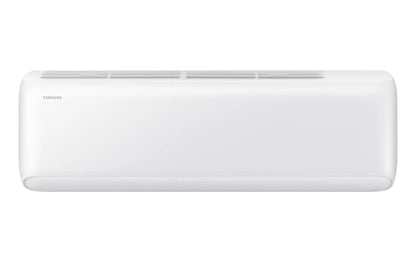

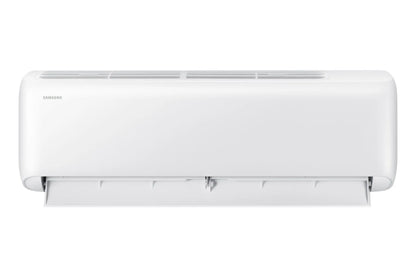

Samsung 12000BTU R32 Inverter Aircon

 Specification

 Capacity
 Capacity (Cooling, Btu/hr)
 10884 Btu/hr
 Capacity (Heating, Btu/hr)
 11225 Btu/hr
 Capacity (Cooling, Min - Max, Btu/hr)
 2729 - 13648 Btu/hr
 Capacity (Heating, Min - Max, Btu/hr)
 2729 - 15013 Btu/hr
 Capacity (Cooling, kW)
 3.19 kW
 Capacity (Heating, kW)
 3.29 kW
 Capacity (Cooling, Min - Max, kW)
 0.80 - 4.00 kW
 Capacity (Heating, Min - Max, kW)
 0.80 - 4.40 kW

 Energy Efficiency
 EER (Cooling, W/W)
 3.10 W/W
 COP (Heating, W/W)
 3.61 W/W
 EER (Cooling, Btu/hW)
 10.57 Btu/hW
 COP (Heating, Btu/hW)
 12.31 Btu/hW

 Noise Level
 Noise Level (Indoor, High/Low, dBA)
 44/28 dBA
 Noise Level (Outdoor, High/Low, dBA)
 55 dBA

 Electrical Data
 Power Source(Φ/V/Hz)
 1 / 220~240~ / 50
 Power Consumption(Cooling, W)
 1029 W
 Power Consumption(Heating, W)
 911 W
 Operating Current(Cooling, A)
 4.7 A
 Operating Current(Heating, A)
 4.3 A

 Physical specification
 Gross Dimension (Indoor, WxHxD)
 911×343×290 mm
 Gross Dimension (Outdoor, WxHxD)
 794×615×376 mm
 Net Dimension (Indoor, WxHxD)
 835×275×200 mm
 Net Dimension (Outdoor, WxHxD)
 732×555×330 mm
 Gross Weight (Indoor, kg)
 11.0 kg
 Gross Weight (Outdoor, kg)
 28.0 kg
 Net Weight (Indoor, kg)
 9.0 kg
 Net Weight (Outdoor, kg)
 25.5 kg
 Loading Quantity (20/40/40Hft without Pipe)
 90/212/252

 Technical Information
 Piping Length (Max, m)
 20 m
 Piping Height (Max, m)
 10 m
 SVC Valve (Liquid (ODxL))
 6
 SVC Valve (Gas (ODxL))
 9.52
 Moisture Removal (l/hr)
 0.76 l/hr
 Air Circulation (Cooling, m/min)
 10.33 m/min
 Refrigerant (Type)
 R32
 Refrigerant (Charging, kg)
 0.59 kg
 Refrigerant (Charging, tCO2e)
 - tCO2e
 Low Ambient (Cooling, )
 18-48
 Low Ambient (Heating, )
 -7-24
 Outdoor Unit (Compressor Type)
 Rotary
 Outdoor Unit (Anti-Corrosion Fin)
 Yes

 Air Flow
 WindFree Cooling
 No
 Air Direction Control (Up/Down)
 Auto
 Air Direction Control (Left/Right)
 Manual
 Air Flow Control Step (Cool/Fan)
 3 step

 Air Purification
 PM 1.0 Filter
 No
 Tri Care Filter
 No
 4-in-1 Care Filter
 No
 Copper Anti-bacterial Filter
 No
 Auto Clean (Self Cleaning)
 No

 Convenience
 SmartThings
 No
 AI Auto Cooling
 No
 Motion Detect Sensor
 No
 Freeze Wash
 No
 Filter Cleaning Indicatior
 No
 Indoor Temp. Display
 Yes
 Display On/Off
 Yes
 Beep On/Off
 No
 24-Hour Timer
 Yes
 Auto Changeover
 No
 Auto Restart
 Yes

 Operating Mode
 Auto Mode
 Yes
 Fast Cool
 Yes
 Dry Comfort
 No
 Good Sleep
 Yes
 Eco Mode
 No
 Dehumidification
 Yes
 Fan Mode
 Yes
 Quiet
 No
 Smart
 WiFi Embedded
 No

 App Connectivity
 SmartThings App Support
 No
