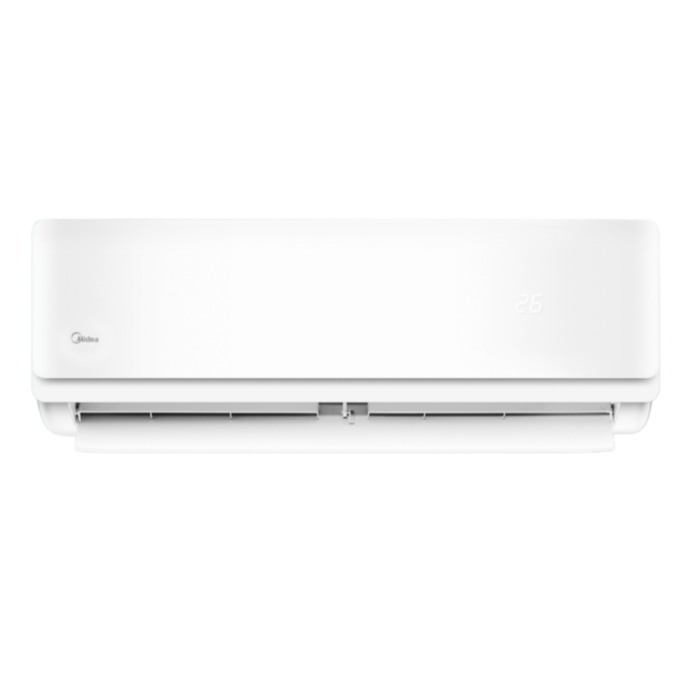

Midea Aurora 34000BTU F/S Air Conditioner

Specifications:

Power supply
V-Hz-Ph 220-240V~ 50Hz, 1Ph

Cooling:
Capacity W
9965

Input W
3120

Rated current  A
14.50

EER W/W
3.19

Heating:

Capacity W
10844

Input   W
3080

Rated current  A
14.3

COP   W/W
3.52



Max. input consumption W
3978

Max.current W
17.8



Compressor:

Model
ATQ390V1UMT

Type
ROTARY

Brand
GMCC

Capacity Btu/h
33990

Input W
3272

Rated current(RLA)  A
15.1

Thermal portector position
INTERNAL

Capacitor uF
70

Refrigerant oil/oil charge ml
1100 CC (VG74)



Indoor Fan Motor:

Model
YKFG-60-4-2

Input W
100

Capacitor uF
3.5

Speed(turbo)/Hi/Mi/Lo)  r/min
1210/1080/900



Indoor coil:

a. Number of rows
3

b.Tube pitch(a)x row pitch(b) - mm
21x13.37

c.Fin spacing -mm
1.3

d.Fin type
Hydrophillic aluminium

e.Tube outside dia.and type -  mm
¢17.innergroove tube

f.Coil length x height x width - mm
965x378x40.11

g.Number of circuits
7



Indoor air flow(turbo)/Hi/Mi/Lo)  - m3/h
1370/1200/980

Indoor noise leverl (turbo)/Hi/Mi/Lo) - dB(A)
50.8/47.1/41.7



Indoor Unit:

Dimension(W*D*H) - mm
1259x282x362

Packing (W*D*H)- mm
1340x450x380

Net/Gross weight -Kg
21.8/27.6



Outdoor fan motor:

Model
YKT-60-6-40

Input W
133/125

Capacitor uF
5

Speed (HI) - r/min
870/-/820



Outdoor coil:

a. Number of rows
3

b.Tube pitch(a)x row pitch(b) - mm
21x13.37

c.Fin spacing -mm
1.4

d.Fin type
Hydrophillic aluminium

e.Tube outside dia.and type -  mm
¢17.innergroove tube

f.Coil length x height x width - mm
1005x756x40.11

g.Number of circuits
6



Outdoor noise level
dB(A)   62.1



Outdoor Unit:

Dimension(W*D*H) - mm
946x420x810

Packing (W*D*H)- mm
1090x500x875

Net/Gross weight -Kg
70/75



Refrigerant type  - g
R410A/2650

Design pressure - MPa
4.2/1.5



Refrigerant pipping:

Liquid side/Gas side - mm(inch)
Cl>9.52/Cl>15.9(3/8"/5/8")

Max. Refrigerant pipe length- m
25

Max. difference in level -m
10



Connection wiring
4x1.0(Optional)

Thermostat type
Remote Control

Operation temperature-
·C   17-30



Room temperature:

Indoor(cooling/heating) - ·C
17-32/0-30

Outdoor(cooling/heating)- ·C
18-43/-7-24



Application area-  m2
45-66



Indoor Dimensions: W x D x H
1260 x 283 x 362mm

Outdoor Dimensions: W x D x H
 1048 x 455 x 810mm





More Information

SKU	H3412
Color	White
Brand	Midea
Blue Tag	No
MPN	MSABF-34HRN1
