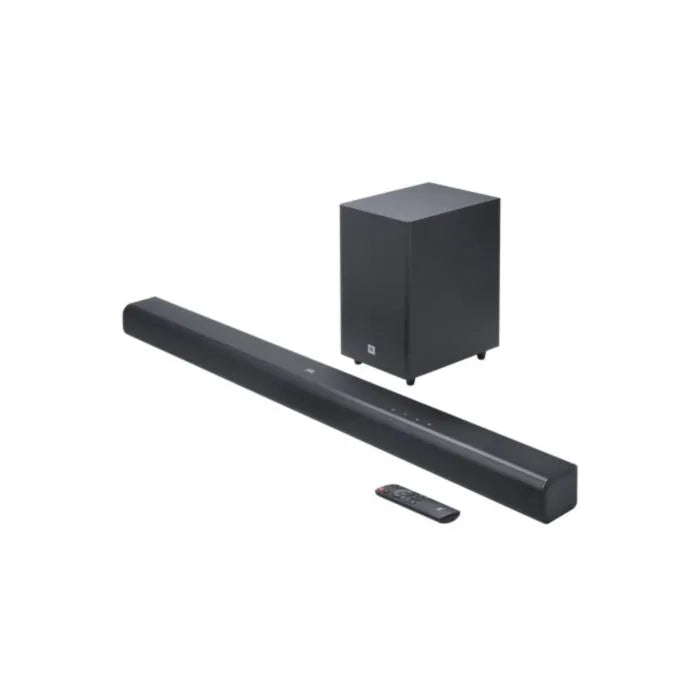

JBL 3.1Ch SB560 240W Cinema Soundbar

JBL 3.1Ch SB560 240W Cinema Soundbar - CON125

Description

Epic Bass. Incredible sound.

Step up your sound with the 3.1 channel JBL Cinema SB560 soundbar. 240 watts of powerful Dolby Audio in a compact design, plus extra deep, extra loud bass from a wireless 5.25” subwoofer will make everything you watch more exciting. A dedicated center channel means TV and film dialogue always sounds crystal clear. Set-up is simple, with a choice of either a one-cable HDMI ARC or optical connections. And when the TV is off, seamless Bluetooth connectivity means you can use it to play your favorite streaming music and podcasts from any device.

SpecsGeneral Specifications
Model
CINEMA SB560
Sound system
3.1 channel
Power supply
100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%)
240W
Soundbar output power (Max @THD 1%)
150W
Subwoofer output power (Max. @THD 1%)
100W
Soundbar transducer
3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters
Subwoofer transducer
5.25” (133 mm), wireless subwoofer
Standby power
< 0.5 W
Operating temperature
0°C - 45 °C

Audio Specifications
Frequency response
45Hz-20kHz (-10dB)
Audio inputs
1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions
Soundbar dimensions (W x H x D)
950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’
Subwoofer dimensions (W x H x D)
200 x 324 x 250 mm / 7.9" x 12.8" x 9.9"
Soundbar weight
2.5kg / 5.5 lbs
Subwoofer weight
4.2 kg / 9.3 lbs
Packaging dimensions (W x H x D)
1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"
Packaging Weight
8.8kg / 19.4 lbs

Control and Connection Specifications
USB port
Type A
USB rating
5V DC, 0.5A
Supporting file formats
mp3
MP3 codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
16 - 48 kHz
Bluetooth version
5.3
Bluetooth profile
A2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range
2400 MHz – 2483.5 MHz
Bluetooth Max. transmitting power
<10 dBm (EIRP)
Bluetooth modulation
GFSK, π/4 DQPSK, 8DPSK
2.4G wireless transmitter frequency range
2402-2481 MHz
2.4G wireless transmitter power
＜10dBm (EIRP）
2.4G wireless modulation
GFSK

Video Specifications
HDMI ARC (Audio Return Channel)
1
HDMI HDCP version
1.4

What's in The Box?

•Soundbar
•Wireless subwoofer
•Remote control with batteries
•Power cords (up to 8pcs depending on region SKUs)
•HDMI cable
•Wall-mount bracket kit with screws
•Quick start guide
•Warranty card
•Safety sheet
