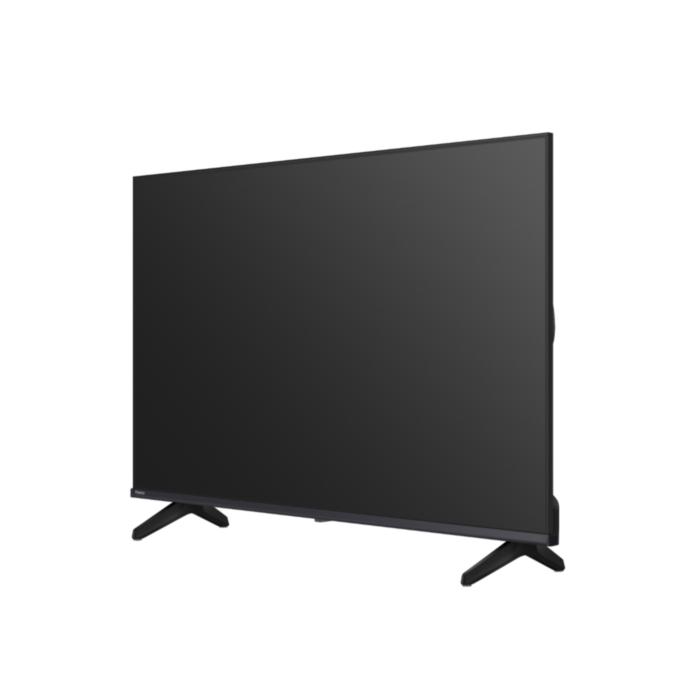

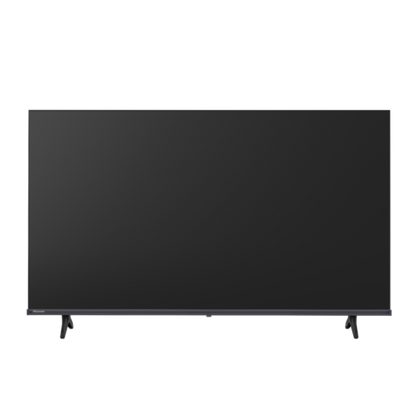

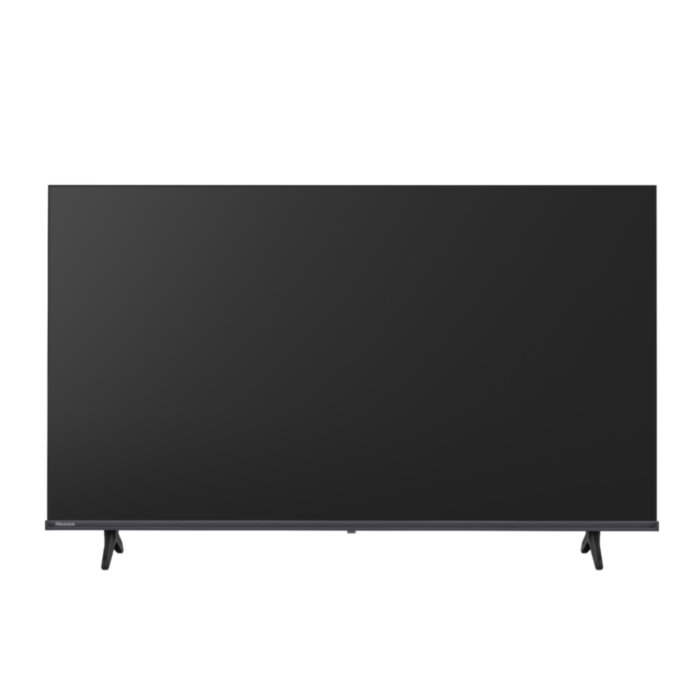

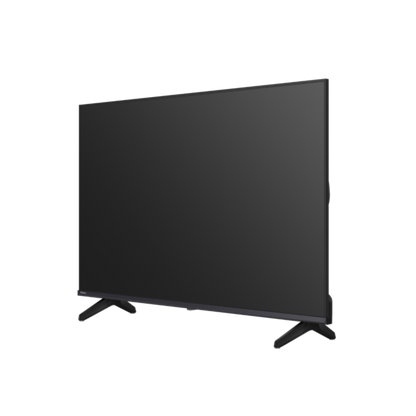

Hisense 81cm (32") Smart LED TV

Hisense 81cm (32") Smart LED TV - 32A4Q



Image display

Panel manufacturer

Hisense

Panel model

LCM:JHD315K1H61-T0L2, Open Cell : PT320AT02-5

Active display area, horizontal dimension

697,685

Active display area, vertical dimension

392,256

Screen size (rounded to nearest integer)

80

Screen size (rounded to nearest integer)

32

Display technology

LCD/ LED lit

Backlight source

Direct LED

Resolution (Horiz x Vert)

1366*768

Screen curvature radius

-

Colour depth

8bit

Image refresh frequency

60

Smooth motion rate

60

3D image

-

Typical brightness of white

250nit

Native contrast ratio

3000:1

Viewing Angle (Horiz / Vert)

178/  178

Quantum dot

No

Wide colour gamut

No

KSF phosphor

No

UHD Premium

No

Response Time

8,5



Connectivity

RF- Radio frequency input

1

AV input

1

AV output

0

USB interface type 3.0 (Qty / List….)

0

USB interface type 2.0 (Qty / List ….)

1/ USB

Optical digital audio output (SPDIF)

1

Earphone jack

1





HDMI ports

HDMI inputs

2

HDMI type 8K@60Hz

No

HDMI type 4K@60Hz with HDCP version 2.2

No

HDMI 2.1  compliant input

No

Enhanced Audio Return Channel ( eARC)

Yes

CEC- Consumer Electronics Control via HDMI

Yes



Smart TV

Ethernet port (RJ45 connector)

1

Wi-Fi  protocols IEEE 802.11 {b, g, n, ac, ad, ..}

b, g, n

Wi-Fi bands

2,4

DLNA compliance

Yes

Bluetooth / BT version

No / No

Anyview (Screen mirroring)

Yes

BVOD services (Iview,  SBS on Demand, 9Now, 7Plus, Tenplay)

Iview,  SBS on Demand, 9Now，tenplay

Installed Applications {List ……}

Netflix/Youtube/Prime Video……

Freeview Plus - HbbTV 2.0

Yes

Web browser [Chrome | Opera | Other]

Odin



Digital TV reception

Digital broadcating (DVB-T / DVB-T2)

Yes / Yes

Video decoder (MPEG2 / MPEG 4)

Yes / Yes

LCN- Logical channel number and DTV Service name support

Yes

Teletext  / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX

Yes / Yes / 4:3

Subtitles

Yes

EPG- Electronic programming guide, 7 days for all services

Yes

Audio description (vision impairment aid)

Yes

Audio description (vision impairment aid)

Yes

Parental rating lock

Yes

Analog Tuner

Yes





Image processing

Backlight control

No

Light sensing

No

Dynamic backlight control

No

Frame rate control

No

Variable Refresh Rate (VRR)

No

Freesync

No

Auto Low Latency Mode for VRR

No

Local dimming/ controllable zones

No

Zoom function settings

Auto/ 16:9/ 4:3/21:9/Movie Zoom/ Dot to Dot

HDR - High Dynamic Range for luminance (DMP / Netflix / HDMI)

No / No / No

HDR system (HDR10 / HDR10+ / Dolby Vision)

No / No / No

HLG (Hybrid Log-Gamma) for HDR

No

HEVC (H.265) decoder

No

Motion enhancement and compensation (MEMC)

No

Picture mode

Standard,Cinema Day, Cinema Night, Dynamic, Sports





Sound

Audio power output per channel

6W

Number of speakers (Tweeter / Midrange / Woofer)

0 /2 /0

Automatic volume level (AVL)

Yes

Audio equalizer

Yes

Dolby Digital

Yes

Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….}

DTS Virtual X

Lip-sync  adjustment

Yes

Sound mode

Stand，Cinema…….





Features

On/off timer

Yes

Power off if no signal

Yes

Sleep timer

Yes

Program lock

Yes

OSD transparency control

Yes

User interface

VIDAA U8.5

Software version OSD indication

Yes

Legal requirements: Disclaimer / Acceptance of Terms

Yes / Yes

Favourite channels list

Yes

Electronic point of sales (E-POS)

Yes

OTA- Over the air software updates

Yes

Voice command

No

Screen mirroring {Miracast, Anyview Cast, ...}

Anyview Cast

Smartphone remote control application {Rremote Now, ...}

vidaa app

Replaceable demo video for Store mode

Yes

Remote control via serial port

No





USB media player

Personal Video Recorder

Yes

Time Shift

Yes

DTV Recording (EPG scheduling / start from Standby )

Yes / Yes

DivX decoder

No

MPEG4 (H.264) / H.265 decoder

Yes / Yes

DMP- Digital media player content (Music / Video / Photos / Text)

Yes / Yes / Yes / No

DMP Auto-play

No

DMP for UHD content via USB

Yes

DMP File allocation table (FAT / FAT32 / exFAT / NTFS)

Yes / Yes  / No / Yes

PVR  File allocation table (FAT / FAT32 / exFAT / NTFS)

Yes / Yes / No / Yes





Hotel lock

Protected Hotel lock submenu (Password / fixed code)

No / Yes

Clone function for programs, sound and image settings.

Yes

Sub-menu lock, including tuning lock

Yes

Keyboard lock

Yes

Maximum volume lock

Yes

Power on volume

Yes

Power on, apply default sound/image settings

No

Power on source selection

Yes

Power on RF channel selection

Yes

Power on mode (On / Standby / Last)

Yes / Yes / Yes

Inputs access (Enable / Disable)

Yes





Hardware

Processor / Cores

NT72690TBG-8C2K/W

Dual Tuner

No

Colour (Front bezel, rear, stand)

Black / Black /  Black

Speakers mounted in enclosure

Yes

Mains  power switch

No

Swivel base

No

Compact packaging

Yes

Supply  range [Voltage / Frequency ]

AC100~240V,50Hz/60Hz

Standby consumption

< 0.5W

Maximum time delay Power On to sound an image

30





Installation

Stand area (Width / Depth)

627×183

Wall mount dimensions (Horiz x  Vert)

100x100

Wall mount, screw thread

M6

VESA compliance

NO

Detachable power cord

Yes

Power cord length

155





Accessories

Remote controller (Technology / Part number )

IR /EN2K38H

Battery (size / quantity)

AAA / 2

User manual (Available online) / Quick setup guide (Print)

1 / 1

Warranty [In User manual | In separate sheet]

In separate sheet

Skype camera (Qty / Part number)

-

3D glasses type  [Passive | Shutter] / Link [RF | IR | BT]

-

3D glasses (Qty / Part number)

-





Dimensions

Dimensions with stand (W x H x D)

722×472×183

Dimensions without stand (W x H x D)

722×426×78

Carton box dimensions (W x H x D)

789x111x491

Net weight (with stand / without stand)

3.5/3.4

Gross weight

5

Container load (20ft / 40ft / 40ft HC)

612/1268/1585





Licensing and certification

EMC- Electromagnetic Compatibility

Yes

CB- Electrical safety

Yes

HDMI

Yes (Hisense internal test)

Dolby Digital

Yes

MEPS- Test report

Yes

ROHS

No

Electrical safety  conformity for Australia

Yes





Documentation

CB report and certificate

Yes

EMC report and certificate

Yes

Power cord, plug and connector Australian safety approval

Yes

More Information

SKU	85553
TV Size	30" - 39"
Brand	Hisense
Blue Tag	No
MPN	32A4Q
EAN	6942351417943
